Automatic Fire Suppression Tube System

- What is GEOCHEM Fire Suppression Tube System?

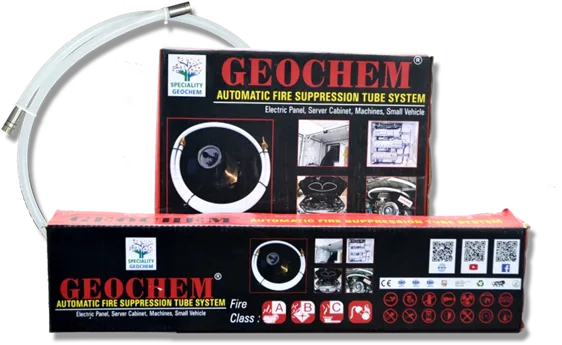

The primary goal of automatic fire suppression tube system from speciality geochem is to prevent a fire from spreading. This System is intended to prevent or extinguish fires automatically within seconds. The system consists of a heat sensitive tube made of special plastic which is closed by a fitting. It has both storage and detection function. The extinguishing agent is stored directly in the Tube and no additional storage device such as cylinder is needed.

FM-200 or HFC-227ea is chemically known as Heptafluoropropane or Clean Agent Fire Suppression System, which is a fire suppression agent.

buy-fire-extinguisher

- How does GEOCHEM Fire Suppression Tube System Work?

Fire begin for various reasons in different environment. Combustible liquid, such as the oil-based coolant used in CNC machine, may spark due to friction and ignite. In the electrical panels or server racks, electrical arching can flash and ignite fires. These causes damage to the equipment by melting wire & igniting other flammable material in the environment.

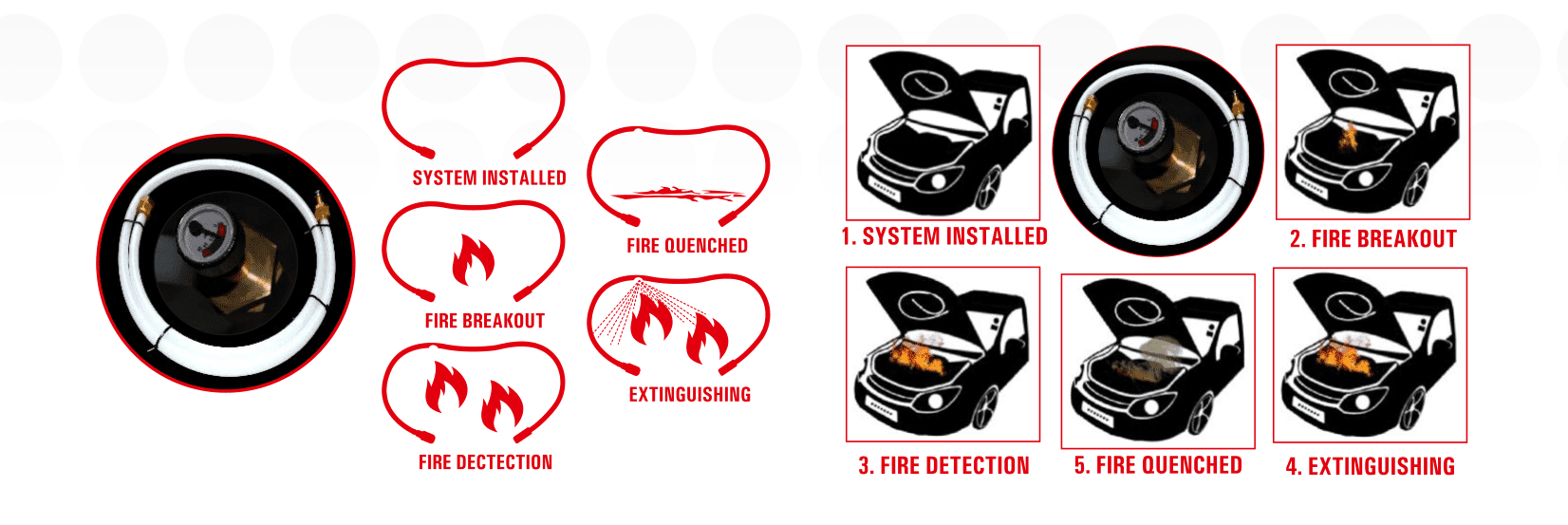

When the temperature in the protected enclosure rises to a critical threshold, the detection tube melts down at the point where the affecting temperature is the highest. Melting the tube creates a hole releasing the entire extinguishing agent stored in the tube onto the source of the fire. FEATURES APPLICATION AREAS

Features

  • Universal use: high flexibility of GEOCHEM-FIRE SUPPRESSION TUBE SYSTEM and A, B, C and electrical fires class rating can protect almost any space
  • High cost-effectivity: zero maintenance, long working life, automatic activation beats the competition in cost-effectivity
  • Automatic operation based on increased temperature: ideal for non-occupied spaces & spaces out of sight Fully independent: system is operational 24/7 without any power supply
  • No cylinder for storage of extinguishing agent needed: the whole system can be placed inside the protected enclosure
  • Option to connect the pressure switch and other additional components like signaling unit to perform further functions
  • Operation temperatures: up to 40°C to 90°C
  • No maintenance during entire working life zero maintenance costs long working life: upto 5 years depending on the type of application
  • Clean and effective extinguishing agent: world-wide known and accepted HFC-227ea gas
  • No pressurization needed: the system works by increasing pressure of the extinguishing agent when heated
  • No harm to protected enclosure and people when discharged
  • Very simple installation: no training required for installation
  • Activation temperature: about 95°C & 120°C
  • Due to physical and chemical properties of the agent, pressure in the tube can vary depending on the ambient temperature. The higher the ambient temperature, the higher pressure in the tube and vice versa at very low temperatures the pressure of agent vapors is zero. Indicator on the pressure gauge can vary from 0 bar (when temperatures are very low) to 15 bar (when temperatures are very high).

Application Areas

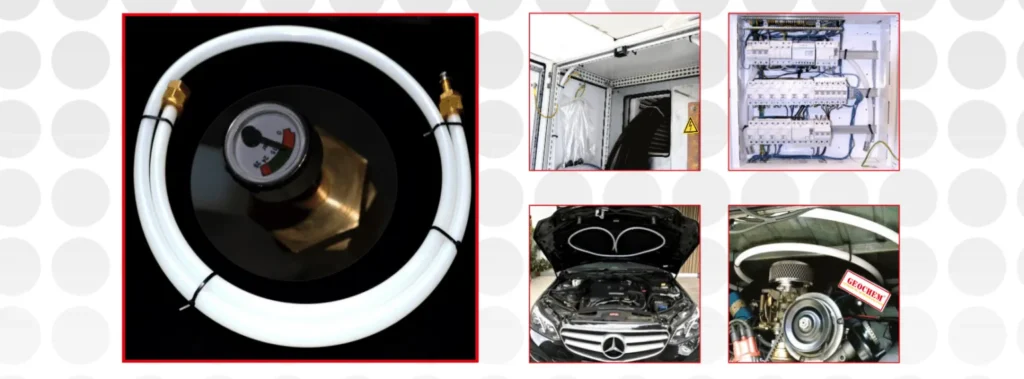

  • Engine compartments of vehicles, machines,pleasure boats, earthmoving equipment

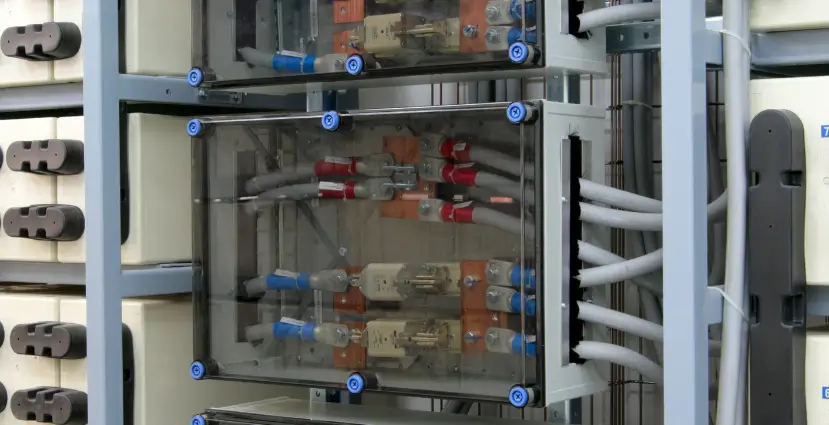

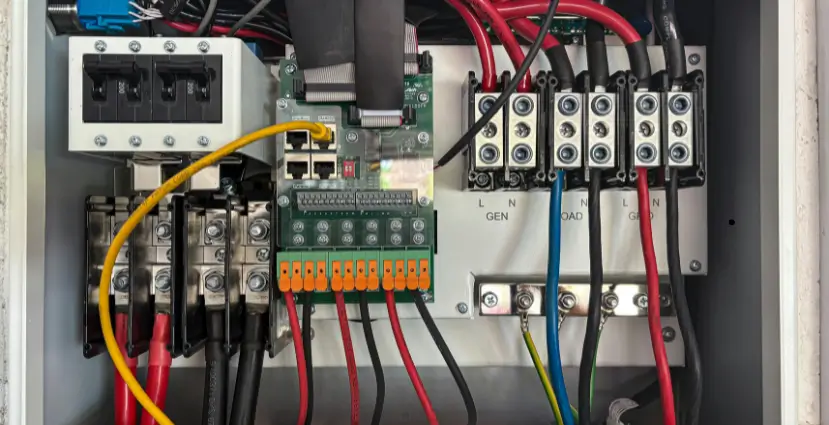

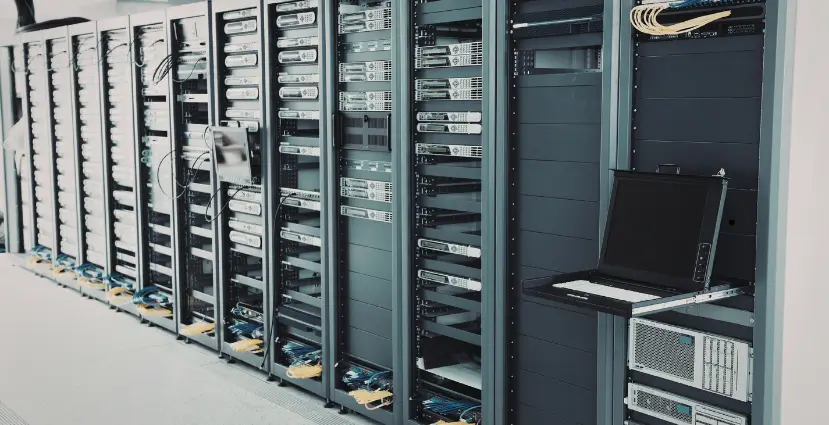

  • Electrical Panels, IT server racks and battery cabinets
  • Vending machines, POS machines, ATMs

Advantages

  • Long Duration Long Duration : Long lifespan of the system.
  • Cooling Effect : The HFC agent has also cooling effect.
  • Independent : The system does not require power supply for activation.
  • Cost Effective : Long durability and no maintenance make it an extremely cost-effective solution,
  • Universal Use : The system fits almost any small enclosure
  • Automatic : Automatic activation by detecting increased temperature.
  • Easy to Install : The system can be installed by anyone and thus no training is required for installation. Protective gear is a must while installation
  • Harmless : The HFC agent does not conduct electricity, corrode or cause thermal shock damage and therefore there is no risk of harm or side effects to the protected enclosure.
  • Safe for People : The concentration of the agent is harmless to people and possess no threat to health once activated.
  • Clean : The HFC agent discharges as a liquid, disperses in the form of a gas
Type Of System Extinguishing Agent Outside Diameter Of The Tube(Mm) Max Volume Coverage Of The Protected Enclosure For Electric Panel (M3) Max volume coverage of the protected enclosure for Vehicles (m3)
GT50
0.5 mtr.
19
0.17
0.13
GT100
0.44
0.44
0.31
GT200
2.0 mtr.
0.89
0.67
GT300
3.0 mtr.
1.34
1.03
GT400
4.0 mtr.
1.75
1.26

Installation
